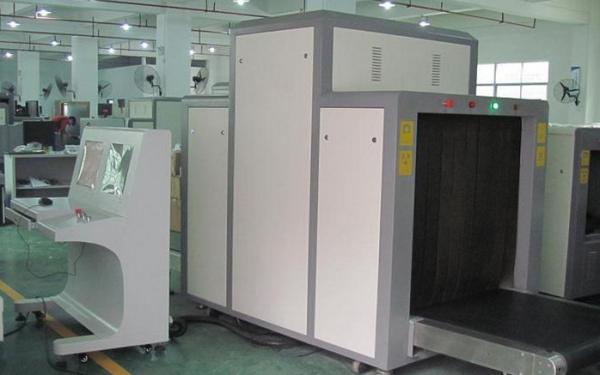

ABNM 100100 40mm steel plate penetration X ray baggage scanner
Quick Details
Place of Origin: Guangdong, China (Mainland) Brand Name: ABNM
Model Number: ABNM-100100
Tunnel size: 1000(w)*1000(h)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 200kg
Penetration: 40mm steel
Film Guarantee: Guarantee ISO1600 Film
Warranty: 24 Months
Packaging Details: wooden case
Delivery Detail: Within 7 working days
Hotel X-ray Baggage Scanner X-ray Luggage Screening
Airport Parcel Security Scanner ABNM-100100
Product Description
X-ray penetrate inspection, the object can be found within the
metal structure, can display the naked eye can not see where
the liquid is also very obvious object display. It is widely used
in the factory testing of security products and business
units such as: electronic factories, shoe factories, toy factories,
courts, railway stations, airport and event bag, line
security management package.
General Specification:
Tunnel Size 1000(W)*1000(H) mm
Conveyor Speed 0.22m/s
Conveyor Max Load 200kg
Dose per Inspection < 1.7μGy/h
Resolution < 0.101mm Copper Wire
Spatial resolution Level dia1.3mm
Vertical dia1.0mm
Penetrate resolution Dia 0.511mm
Penetration 40mm Steel
Film Safety Guarantee ISO1600 Film
X-ray Leakage <0.1 μGy/h (at a distance of 5cm From external
housing)
X-ray Generator:
Generate direct: Downward
Generate angle: 80 degree
Anode Voltage: 100~160Kv
Anode power: 0.4 to 1.2mA
Cooling / Duty Cycle: Oil Cooling /100%
Image System:
X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit
Deep
Monitor: High Resolution Color, LCD Accord, 17 inch
Image Processing: Edge enhancement, image strengthening, image
lightening, reducing darkening, image returning, image
retrieval.
Image Grey Level: 4096
Image Max Resolution: 1024 * 1280 pixel
Image Processing: 24bit for processing real time
Image storage: Storage 60000 pictures in real time
Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole
screen continuous observation
Multi-energetic distinguish objects: organic objects in orange,
inorganic objects in blue, mixture in green
10,High-energy/low energy: switch from high energy to low energy
Assist to detect drug and explosive powder
Installation Data:
Operation temperature/Humidity: 0°C-45°C/20%-95%(non-condensing)
Storage Temperature/Humidity: -20°C-60°C/20%-95%(non-condensing)
Operation Power: 220VAC(±10%)50±3Hz
Power Consumption: 1.0 KW (max)
Noise: <58db
Competitive Advantages:
Innovative & Economical
World Class Reliability
Long-Term Flexibility
Ease of Use Increases Efficiencies
Ease of Maintenance
Competitive Price and Professional Service
Application
It is widely used in the factory testing of security products and
business units such as: electronic factories, shoe
factories, toy factories, courts, railway stations, airport and
event bag, line security mana
